AO Smith
AO Smith Century Centurion 1081 Series 2 HP 56Y-Frame Motor - B2855
(No reviews yet)
Write a Review
- SKU:
- B2855
- UPC:
- 786674077097
Frequently bought together:
Description

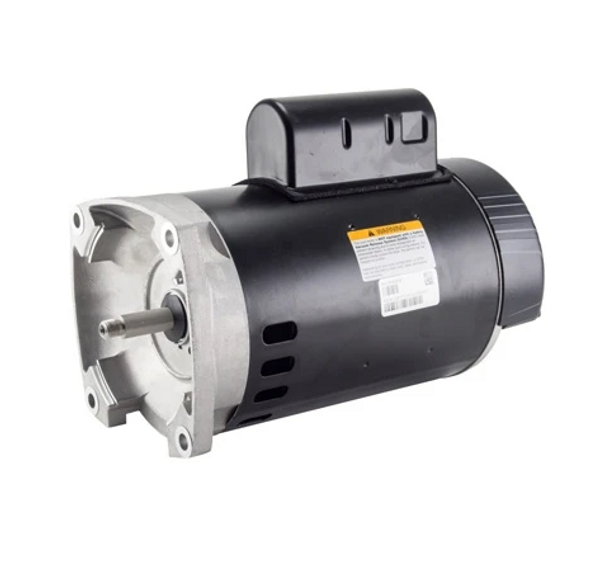

The AO Smith Century Centurion 1081 Series 2 Horsepower 56Y-Frame Motor B2855 combines the proven performance of the Century Centurion 56Y frame platform with the next generation of features for increased reliability, added performance, premium efficiency and serviceability.
Features:
- Centurion "1081" Series Energy Efficient Motor
- No-adjust start switch that is rated for over one million cycles for motor longevity
- Unique electrical design with a unique, advanced cooling system that helps extend the life of the motor
- Heavy-duty shaft made from 303-grade stainless steel helps prevent corrosion
- EZ wrench access that doesn't require the removal of the wiring compartment canopy
- Angled terminal makes wiring connections a breeze
- Patented voltage change dial for easy voltage selection
- Patented bonding lug for easy ground connections
- Patented bearing lock clip for assured bearing retention
- All motors are rated 115/208-230 +/-10% volts to handle voltage variations throughout the US and Canada
- Double sealed bearings and, on shaft end, an integrated Patented SmithSealTM bearing protector to resist water damage
- Rugged motor enclosure system for enhanced durability and premium protection against corrosion
- A full class F insulation system and 50° C ambient capability for increased motor life over class B insulation systems
Specifications:
- Brand: A.O. Smith
- Series: Centurion Energy Efficient
- HP: 2 Horsepower
- Frame: 56Y
- Flange: Square Flange
- Service Factor: 1.10
- Total Horsepower: 2.2
- Volts: 230
- Amps: 10.0
- RPM: 3450
- Shaft: Threaded
- Up-Rated
Compatible for use with the following pumps:
- Sta-Rite Max-E-Glas
- Sta-Rite Max-E-Glas II
- Sta-Rite Dura-Glas
- Sta-Rite Dura-Glas II
- Sta-RiteDyna-Glas
- Sta-Rite Dyna-Max
- Pentair Whisperflo
- Pentair Challenger
- Pentair Pinnacle
- Anthony AR2 Series
